GIGAIPC uATX-Q870A Micro-ATX
Key Features
• Micro ATX form factor
• Support Intel® Core™ Ultra processors (Series 2)
• Intel® Q870 Chipset
• Dual Channel DDR5, 4 x DIMMs
• 4 x 2.5GbE LAN Port
• 4 x SATA 6Gb/s Ports
• Up to 4 x PCIe expansion slots
• 16 x USB Ports
• 2 x COM Port (RS-232/422/485 & RI/5V/12V)
• 2 x COM Ports (RS-232)
• TPM on board
| Weight | 0.65 kg |
|---|---|
| Dimensions | 35 × 33 × 65 cm |
Micro-ATX with Intel® Q870 Chipset, support Intel® Core™ Ultra processors (Series 2), Dual channel DDR5 memory, PCIe, 4 x COM, 16 x USB, 4 x SATA 6Gb/s, TPM on board
Applications & Industries :
- Artificial Intelligence & Machine Learning
- Industrial Automation
- Machine Vision & Imaging
- Enterprise & High-Performance Computing
- Embedded Systems & Kiosks
- Scientific Research & Engineering
► Specifications
| Specification | Details |
|---|---|
| Form Factor | Micro-ATX (244 x 244 mm) |
| CPU Support | Intel® Core™ Ultra processors (Series 2) TDP up to 125W |
| Socket | LGA 1851 |
| Chipset | Intel® Q870 |
| Memory | 4 x DDR5 DIMM slots Up to 192GB capacity Dual-channel DDR5 UDIMM: up to 5600 MHz CUDIMM: up to 6400 MHz |
| Ethernet | 4 x 2.5GbE LAN (Intel® I226LM + I226V controllers) |
| Graphics | Depends on CPU integrated GPU HDMI 2.1 (up to 8K) DisplayPort (up to 4K) VGA (up to 1080p) LVDS (up to 1920×1200) Supports up to 4 independent displays |
| Audio | Realtek® ALC897 |
| Storage | 4 x SATA 6Gb/s ports |
| RAID Support | RAID 0 / 1 / 5 / 10 |
| Expansion Slots | 1 x PCIe x16 Gen5 (x8/x16 mode sharing) 1 x PCIe x16 Gen5 (x8) 1 x PCIe x4 Gen4 1 x PCIe x1 Gen4 1 x M.2 M-Key (PCIe 4.0 x4 NVMe) |

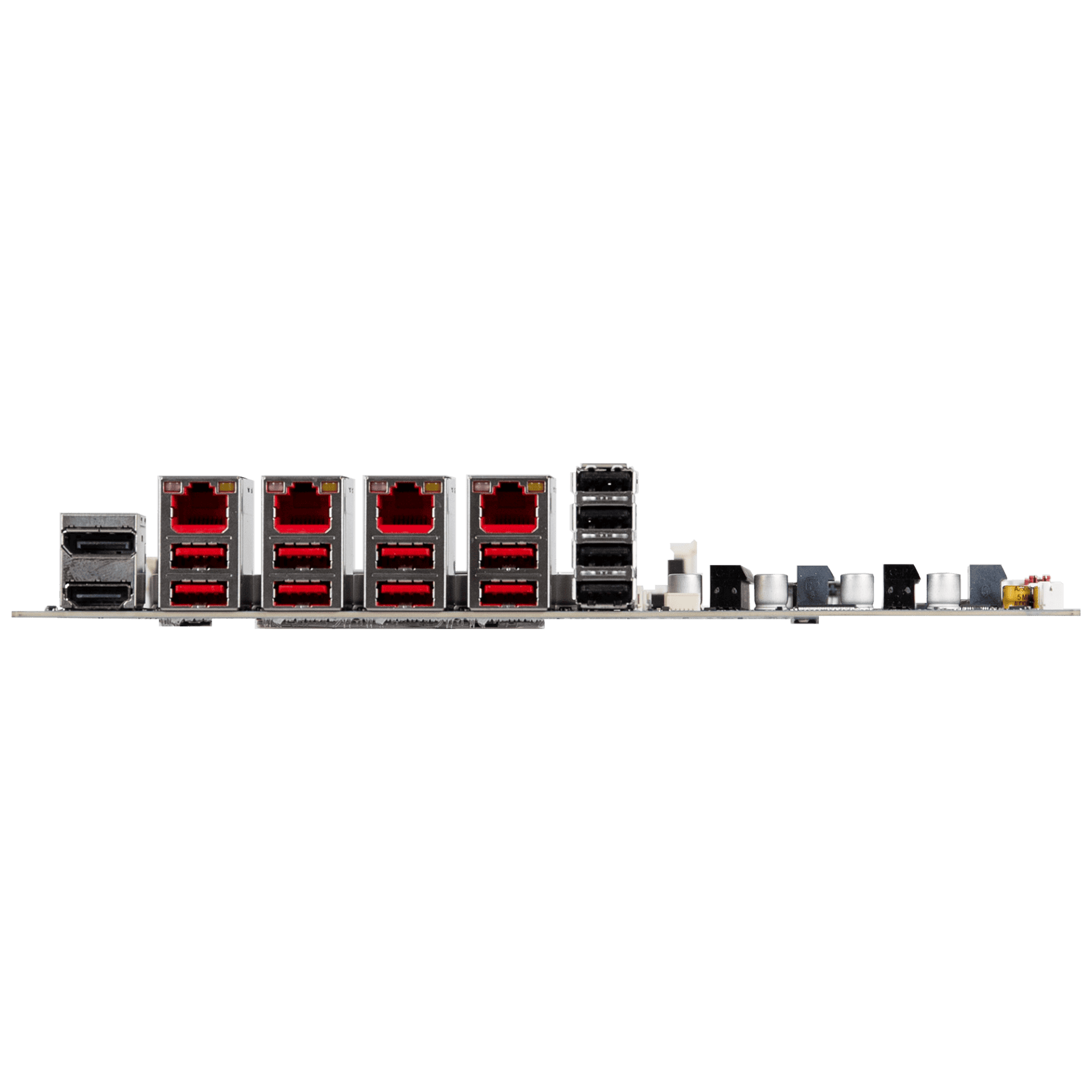

| Rear I/O | 1 x HDMI 1 x DisplayPort 1 x VGA 4 x RJ45 LAN 8 x USB 3.2 Gen2 4 x USB 2.0 |
| Internal I/O | 24-pin ATX power 8-pin CPU power Fan headers (CPU + system) USB headers (USB 2.0 / 3.2) COM headers (RS-232/422/485 + RS-232) GPIO (8-bit), SMBus Front panel, audio, VGA header |
| TPM | Onboard TPM 2.0 (Infineon SLB9670) |
| Audio Codec | Realtek ALC897 |
| Operating System Support | Windows 10 / 11 (64-bit) |
| Operating Temperature | 0°C to 60°C |
| Packaging | IO shield included SATA cables included COM cables included (varies by SKU) |
| Order Information | 9MQ870AMMR-SI |
-
Manual : uATX-Q870A user manual V.10 (English)
GIGAIPC specializes in the field of industrial computing, offering a wide range of industrial-grade motherboards, single-board computers, embedded systems, intelligent display modules, and various expansion cards and GPU kits. These products are suitable for vertical markets such as IoT and edge computing applications, industrial automation, smart retail, smart factories, and intelligent transportation systems (ITS).
UNITEK ME is an authorized distributor of GIGAIPC in the UAE & GCC, delivering advanced IoT, IIoT, and AIoT solutions with complete technical, deployment, and after-sales support.
