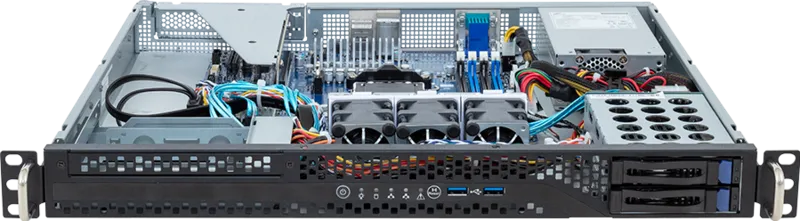

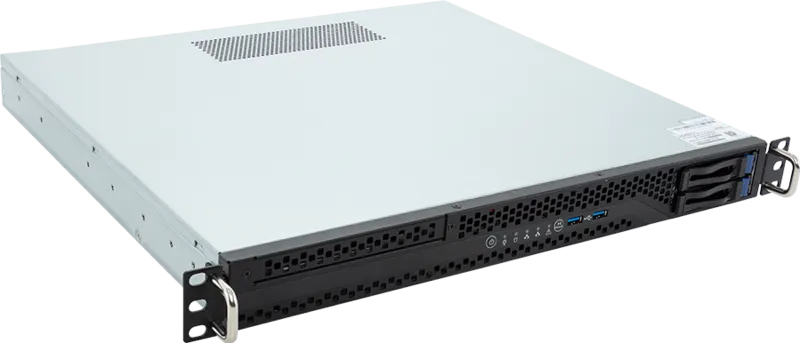

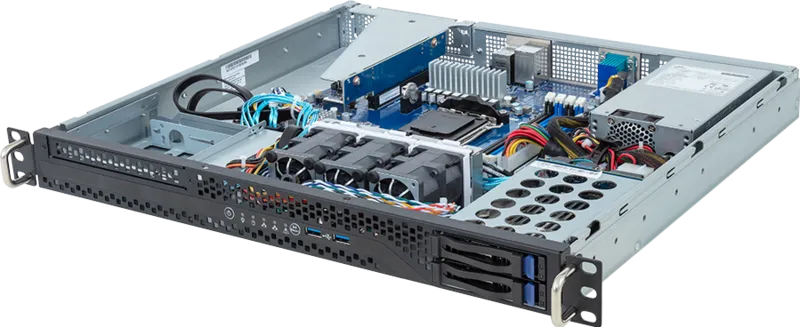

GIGABYTE – R113-C10-AA02
Rack Server – AMD EPYC™ 4005/4004 & Ryzen™ 9000/7000 – 1U UP 4-Bay SATA 400W
Key Features
- Single AMD EPYC™ 4005/4004 & Ryzen™ 9000/7000 Series Processors
- Dual Channel DDR5 ECC/Non-ECC UDIMM, 4 x DIMMs
- 2 x 1Gb/s LAN ports via Intel® I210-AT
- 2 x 2.5″ SATA hot-swap bays
- 2 x 2.5″ SATA internal bays
- 1 x M.2 slot with PCIe Gen5 x4 interface
- 1 x FHHL PCIe Gen5 x16 slot
- Single 400W 80 PLUS Gold power supply
| Weight | 11.25 kg |
|---|---|
| Dimensions | 599 × 535 × 161 cm |
Description
■ Rack Server – AMD EPYC™ 4005/4004 & Ryzen™ 9000/7000 – 1U UP 4-Bay SATA 400W
► Specifications
| Specification | Details |
|---|---|
| Dimensions (WxHxD) | 1U 430 x 43.5 x 393.2 mm |

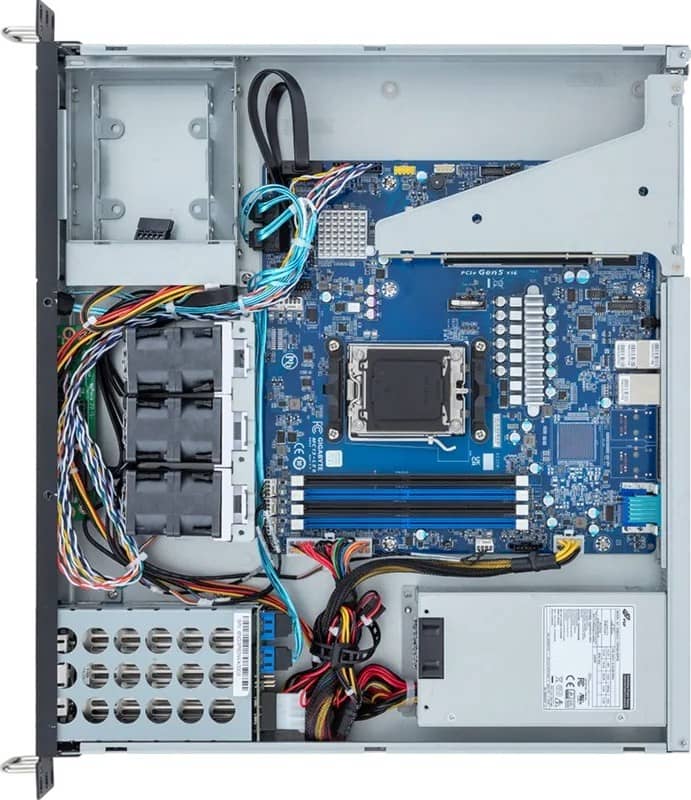

| Motherboard | MC13-LE0 |
| CPU | AMD EPYC™ 4005 Series Processors AMD EPYC™ 4004 Series Processors AMD Ryzen™ 9000 Series Processors AMD Ryzen™ 7000 Series Processors Single processor, TDP up to 105W Overclocking is not supported due to thermal limitations. |
| Socket | 1 x AM5 |
| Chipset | AMD B650E |
| Memory | 4 x DIMM slots DDR5 memory supported Dual Channel memory per processor ECC / Non-ECC memory supported AMD EPYC™ 4005 / Ryzen™ 9000: UDIMM: Up to 5600 MT/s (1DPC) UDIMM: Up to 3600 MT/s (2DPC) AMD EPYC™ 4004 / Ryzen™ 7000: UDIMM: Up to 5200 MT/s (1DPC) UDIMM: Up to 3600 MT/s (2DPC) |
| LAN | Rear: 2 x 1Gb/s LAN (Intel® I210-AT) Support NCSI function 1 x 10/100/1000 Mbps Management LAN |
| Video | Integrated in ASPEED® AST2600 1 x VGA port |
| Storage | Front hot-swap: 2 x 2.5″ SATA Internal: 2 x 2.5″ SATA Internal M.2: 1 x M.2 (2242/2280), PCIe Gen5 x4, from CPU SATA supported only |
| SAS | N/A |
| RAID | RAID 0 / 1 / 10 Support optional RAID add-in cards |
| PCIe Expansion Slots | Riser Card CRS101R: 1 x FHHL x16 (Gen5 x16), from CPU |
| Front I/O | 2 x USB 3.2 Gen1 ports (Type-A) 1 x Power button 1 x Reset button 1 x Power LED 2 x LAN activity LEDs 1 x Storage activity LED 1 x System status LED |
| Rear I/O | 2 x USB 3.2 Gen1 ports (Type-A) 1 x VGA port 1 x COM port 2 x RJ45 ports 1 x MLAN port 1 x ID button with LED |
| Backplane Board | N/A |
| Security Modules | 1 x TPM header with SPI interface Optional TPM2.0 kit: CTM010 |
| Power Supply | Single 400W 80 PLUS Gold power supply AC Input: 100-240V~ / 6-3A / 60-50Hz DC Output: Max 400W / 100-240V~ +12V / 33A +5V / 16A +3.3V / 14A +5Vsb / 3A |
| System Management | ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface Dashboard HTML5 KVM Sensor Monitor Sensor Reading History Data FRU Information SEL Log Hardware Inventory Fan Profile System Firewall Power Consumption Power Control LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings |
| OS Compatibility | EPYC 4005 / 4004: Ubuntu 22.04 Ubuntu 24.04 Windows Server 2022 Windows Server 2025 Ryzen 9000 / 7000: Windows 10 21H2 Windows 11 |
| System Fans | 3 x 40x40x56mm |
| Operating Properties | Operating temperature: 10°C to 35°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing) |
| Weight | Net Weight: 6.25 kg Gross Weight: 11.25 kg |
| Packaging Dimensions | 599 x 535 x 161 mm |
| Packaging Content | 1 x R113-C10-AA02 1 x CPU heatsink Rail kit not included |
| Part Numbers | Barebone package (EPYC 4005/Ryzen 9000): 6NR113C10MR000AC02* Barebone package (EPYC 4004/Ryzen 7000): 6NR113C10MR000AB02* Barebone package (Ryzen 7000): 6NR113C10MR000AA02* Motherboard: 9MC13LE0NR-000* CPU heatsink: 25ST1-121101-A7R Fan module: 25ST2-405623-A0R Riser card – CRS101R: 9CRS101RNR-00* Power supply: 25EP0-2400W3-F3S Optional Rail kit: 25HB2-130000-I0R |
TECHNICAL RESOURCES
-
Manual : Datasheet (English)
About GIGA COMPUTING
Giga Computing, under the GIGABYTE brand, is dedicated to advancing server technology. We focus on developing, manufacturing, and selling optimized enterprise products and solutions to meet evolving market needs and enhance business environments.
UNITEK ME is an authorized distributor of Giga Computing in the UAE & GCC, delivering enterprise servers, AI infrastructure, GPU computing, and data center solutions with complete technical and project support.
