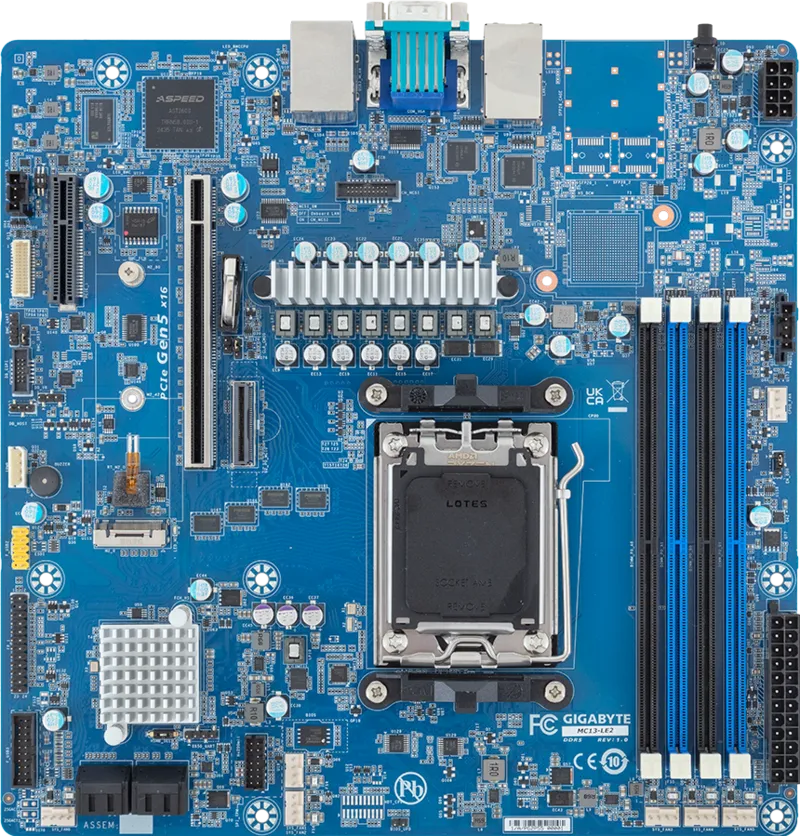

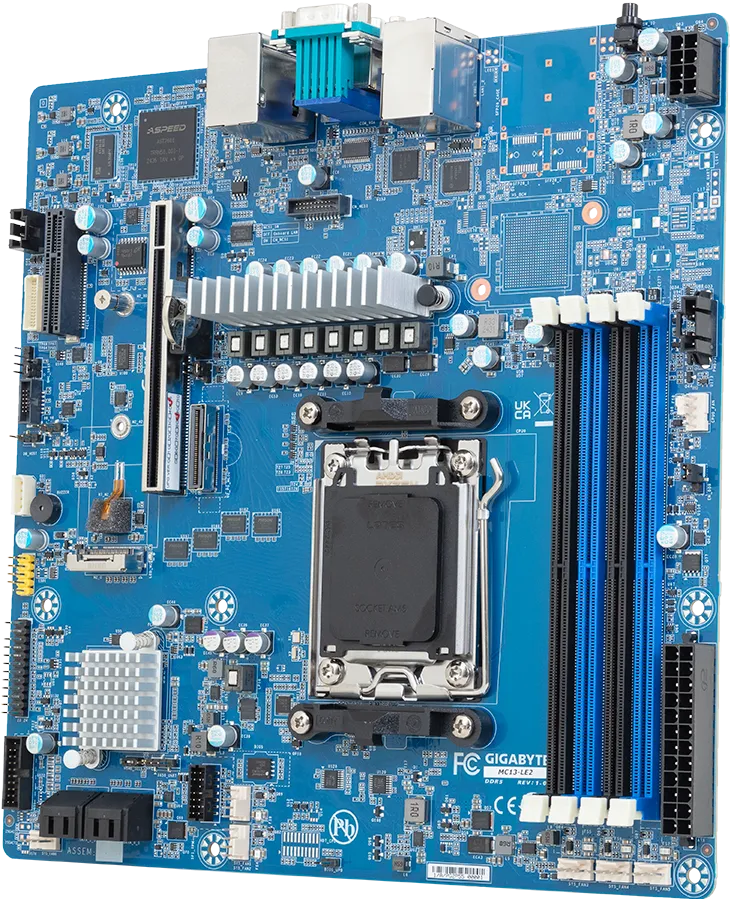

GIGABYTE Workstation Motherboard- MC13-LE2
GIGABYTE Workstation Motherboard- MC13-LE2
Motherboard – AMD EPYC™ 4005/4004 & Ryzen™ 9000/7000 – microATX UP 1Gb/s LAN
Key Features
- Single AMD EPYC™ 4005/4004 & Ryzen™ 9000/7000 Series Processors
- Dual Channel DDR5 ECC/Non-ECC UDIMM, 4 x DIMMs
- 2 x 1Gb/s LAN ports via Intel® I210-AT
- 1 x MCIO 8i connector with PCIe Gen5 x8 interface
- 4 x SATA 7-pin ports
- 1 x M.2 slot with PCIe Gen5 x4 interface
- 1 x PCIe Gen5 x16 expansion slot
- 1 x PCIe Gen4 x4 expansion slot
| Dimensions | 321 × 308.5 × 78.5 cm |
|---|
Description
■ Motherboard – AMD EPYC™ 4005/4004 & Ryzen™ 9000/7000 – microATX UP 1Gb/s LAN
► Specifications
MC13-LE2 (Rev. 1.x) Specifications
| Specification | Details |
|---|---|
| Form Factor | microATX 244 × 244 mm |
| CPU | AMD EPYC™ 4005 Series Processors AMD EPYC™ 4004 Series Processors AMD Ryzen™ 9000 Series Processors AMD Ryzen™ 7000 Series Processors Single processor TDP up to 170W Notes: Recommend installing a liquid cooling kit for 170W CPUs. Ensure adequate airflow when using liquid cooling to prevent heat accumulation. |
| Socket | 1 × AM5 |
| Chipset | AMD B650E |
| Memory | 4 × DDR5 DIMM slots ECC / Non-ECC UDIMM supported Dual-channel memory architecture AMD EPYC™ 4005 / Ryzen™ 9000: Up to 5600 MT/s (1DPC) Up to 3600 MT/s (2DPC) AMD EPYC™ 4004 / Ryzen™ 7000: Up to 5200 MT/s (1DPC) Up to 3600 MT/s (2DPC) |
| LAN | 2 × 1GbE LAN (Intel® I210-AT) NCSI support 1 × 10/100/1000 Mbps Management LAN |
| Video | ASPEED® AST2600 BMC graphics 1 × VGA port |
| Audio | N/A |
| Storage Interface | MCIO: 1 × MCIO 8i connector Supports 2 × Gen5 NVMe drives From CPU, shared with Slot_3 SATA: 4 × SATA 6Gb/s ports from FCH M.2: 1 × M.2 (2242 / 2280) PCIe Gen5 ×4 interface from CPU |
| RAID | RAID 0 / 1 / 10 |
| PCIe Expansion Slots | Slot_3: PCIe Gen5 ×16 (from CPU) Shared with MCIO connector Slot_1: PCIe Gen4 ×4 (from FCH) MCIO: 1 × MCIO 8i (PCIe Gen5 ×8) Qualified cables are recommended for Gen5 signal integrity. |
| Internal I/O | 1 × 24-pin ATX main power connector 1 × 8-pin ATX12V power connector 1 × CPU fan header 5 × System fan headers 1 × USB 3.2 Gen1 x2 header 1 × USB 2.0 x2 header 1 × M.2 slot 1 × MCIO 8i connector 4 × SATA connectors 1 × Front panel header 1 × Backplane board header 1 × PMBus connector 1 × IPMB connector 1 × TPM header |

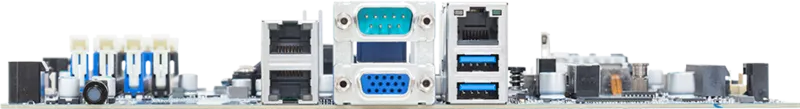

| Rear I/O | 2 × USB 3.2 Gen1 Type-A ports 1 × VGA port 1 × Serial (COM) port 2 × RJ45 LAN ports 1 × Dedicated Management LAN port 1 × ID button with LED |
| Security Modules | 1 × TPM header with SPI interface Optional TPM 2.0 module: CTM010 |
| Board Management | ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console Web Interface Features: • Dashboard • HTML5 KVM • Sensor Monitoring • Sensor Reading History • FRU Information • SEL Log Management • Hardware Inventory • Fan Profiles • System Firewall • Power Consumption Monitoring • Power Control • Advanced Power Capping • LDAP / AD / RADIUS Support • Backup & Restore Configuration • Remote BIOS / BMC / CPLD Updates • Event Log Filtering • User Management • Media Redirection • PAM Order Settings • SSL Settings • SMTP Settings |
| Operating System Support | EPYC™ 4005 / 4004: Ubuntu 22.04 / Ubuntu 24.04 Windows Server 2022 / Windows Server 2025 Ryzen™ 9000 / 7000: Windows 10 21H2 / Windows 11 |
| PSU Connectors | 1 × 24-pin ATX main power connector 1 × 8-pin ATX12V power connector |
| Operating Environment | Operating Temperature: 10°C to 40°C Operating Humidity: 8% to 80% (non-condensing) Storage Temperature: -40°C to 60°C Storage Humidity: 20% to 95% (non-condensing) |
| Retail Packaging Contents | 1 × MC13-LE2 motherboard 1 × I/O shield 1 × Quick Start Guide 4 × SATA cables (500 mm) Single box dimensions: 321 × 308.5 × 78.5 mm Carton dimensions: 630 × 420 × 345 mm Quantity: 10 single boxes per carton |
| Bulk Packaging Contents | 20 × MC13-LE2 motherboards 20 × I/O shields Carton dimensions: 609 × 581 × 362 mm |
| Reference Numbers | Retail SKU: 9MC13LE2MR-000-1* Bulk SKU: 9MC13LE2NR-000-1* Part Numbers: I/O Shield: 12AIO-MC13LE-20R SATA Cable (500 mm, 2-in-1 package): 12CF1-2SAT1B-01R |
TECHNICAL RESOURCES
-
Download : Datasheet (English)
