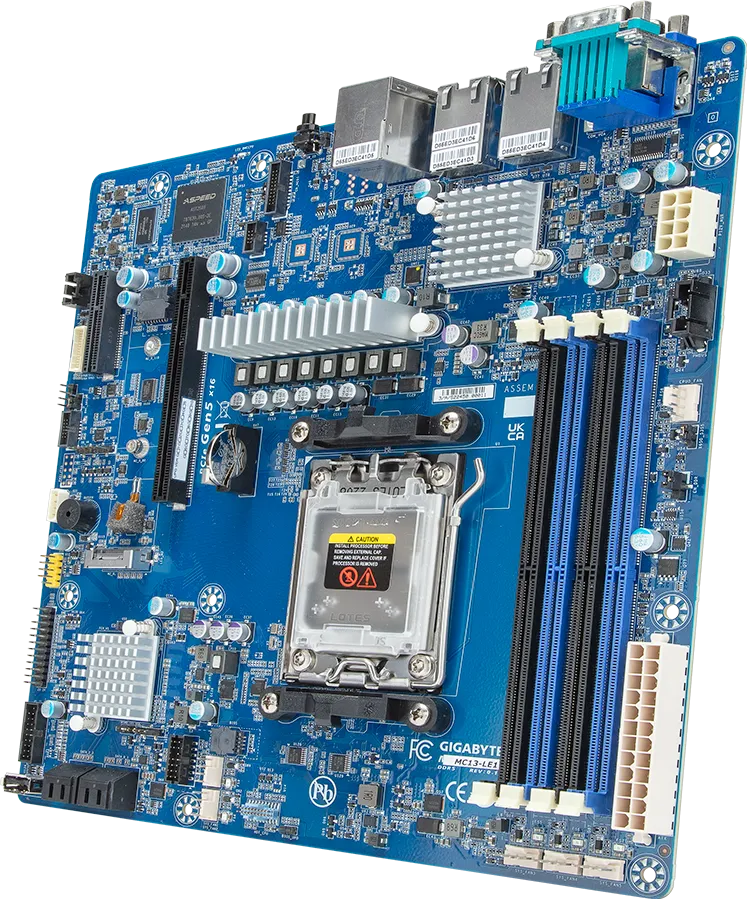

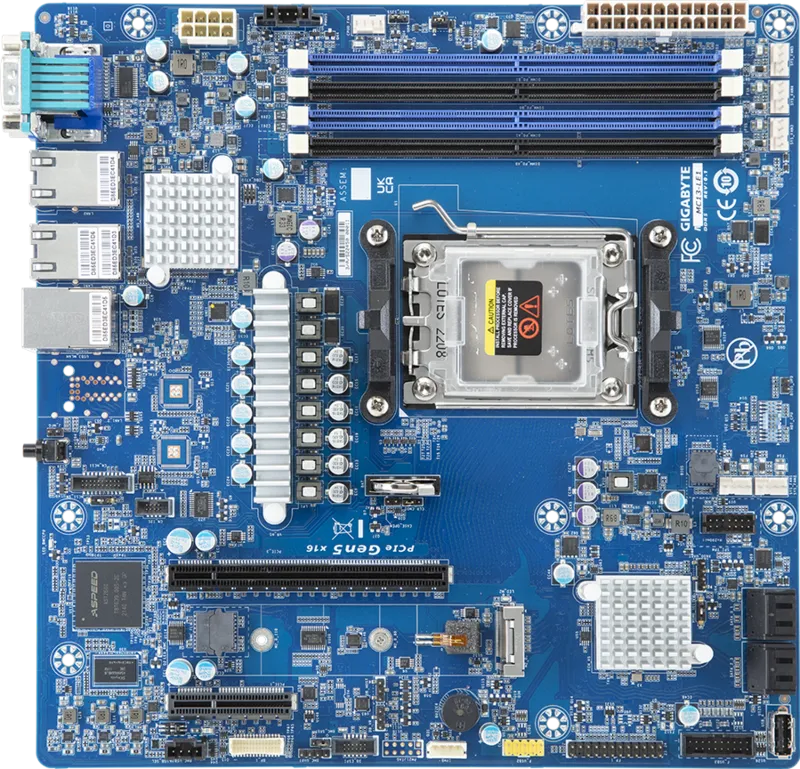

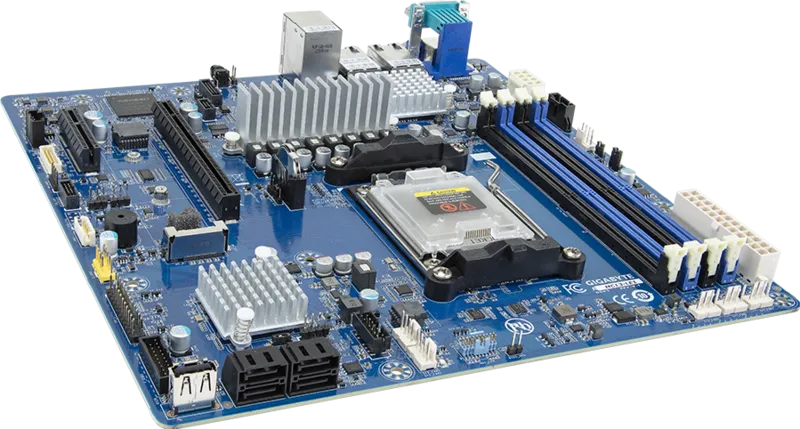

GIGABYTE Workstation Motherboard- MC13-LE1
GIGABYTE Workstation Motherboard- MC13-LE1
Motherboard – AMD EPYC™ 4005/4004 & Ryzen™ 9000/7000 – microATX UP 10Gb/s LAN
Key Features
- Single AMD EPYC™ 4005/4004 & Ryzen™ 9000/7000 Series Processors
- Dual Channel DDR5 ECC/Non-ECC UDIMM, 4 x DIMMs
- 2 x 10Gb/s LAN ports via Intel® X710-AT2
- 4 x SATA 7-pin ports
- 1 x M.2 slot with PCIe Gen5 x4 interface
- 1 x PCIe Gen5 x16 expansion slot
- 1 x PCIe Gen4 x4 expansion slot
| Dimensions | 321 × 308.5 × 78.5 cm |
|---|
Description
■ Motherboard – AMD EPYC™ 4005/4004 & Ryzen™ 9000/7000 – microATX UP 10Gb/s LAN
► Specifications

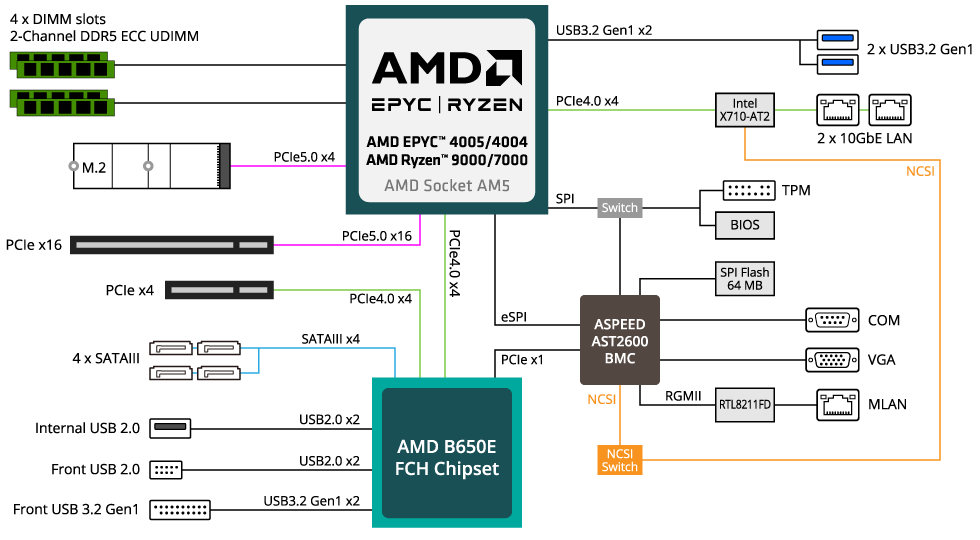

MC13-LE1 (Rev. 1.x / 3.x / 4.x) Specifications
| Specification | Details |
|---|---|
| Form Factor | microATX 244 x 244 mm |
| CPU | AMD EPYC™ 4005 Series Processors AMD EPYC™ 4004 Series Processors AMD Ryzen™ 9000 Series Processors AMD Ryzen™ 7000 Series Processors Single processor TDP up to 170W Notes: Recommend liquid cooling for 170W CPUs. Ensure adequate airflow when using liquid cooling solutions. |
| Socket | 1 x AM5 |
| Chipset | AMD B650E |
| Memory | 4 x DDR5 DIMM slots ECC / Non-ECC UDIMM supported Dual-channel memory architecture AMD EPYC™ 4005 / Ryzen™ 9000: Up to 5600 MT/s (1DPC) Up to 3600 MT/s (2DPC) AMD EPYC™ 4004 / Ryzen™ 7000: Up to 5200 MT/s (1DPC) Up to 3600 MT/s (2DPC) |
| LAN | 2 x 10GbE LAN (Intel® X710-AT2) NCSI support 1 x 10/100/1000 Mbps Management LAN |
| Video | ASPEED® AST2600 BMC graphics 1 x VGA port |
| Audio | N/A |
| Storage Interface | 4 x SATA 6Gb/s ports (from FCH) M.2 Storage: 1 x M.2 (2242 / 2280) PCIe Gen5 x4 interface from CPU |
| RAID | RAID 0 / 1 / 10 |
| PCIe Expansion Slots | Slot 3: PCIe Gen5 x16 (from CPU) Slot 1: PCIe Gen4 x4 (from FCH) |

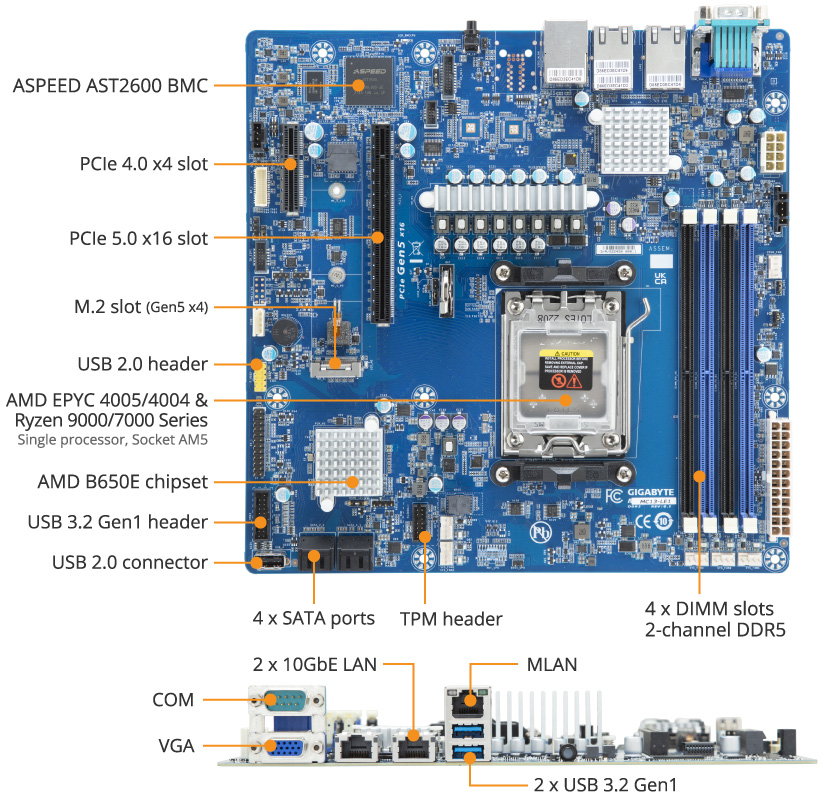

| Internal I/O | 1 x 24-pin ATX power connector 1 x 8-pin ATX12V connector 1 x CPU fan header 5 x System fan headers 1 x USB 3.2 Gen1 x2 header 1 x USB 2.0 x2 header 1 x Internal USB 2.0 Type-A port 1 x M.2 slot 4 x SATA connectors 1 x Front panel header 1 x Backplane board header 1 x PMBus connector 1 x IPMB connector 1 x TPM header |

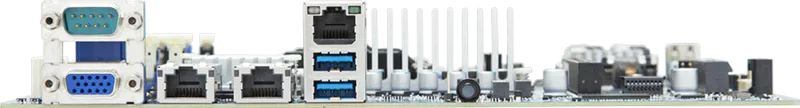

| Rear I/O | 2 x USB 3.2 Gen1 Type-A 1 x VGA 1 x Serial (COM) port 2 x RJ45 10GbE ports 1 x Dedicated Management LAN 1 x ID button with LED |
| Security | TPM header with SPI interface Optional TPM 2.0 Module: CTM010 |
| Board Management | ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console (Web UI) Features: • HTML5 KVM • Dashboard • Sensor Monitoring • Sensor History Logs • FRU Information • SEL Logs • Hardware Inventory • Fan Profiles • System Firewall • Power Monitoring • Power Control • Advanced Power Capping • LDAP / AD / RADIUS Support • BIOS/BMC/CPLD Remote Updates • Backup & Restore Configuration • Event Log Filtering • User Management • SSL Settings • SMTP Settings |
| Operating System Support | EPYC 4005 / 4004: Ubuntu 22.04 Ubuntu 24.04 Windows Server 2022 Windows Server 2025 Ryzen 9000 / 7000: Windows 10 21H2 Windows 11 |
| Power Connectors | 1 x 24-pin ATX Main Power 1 x 8-pin ATX12V CPU Power |
| Operating Environment | Operating Temperature: 10°C to 40°C Operating Humidity: 8% to 80% (non-condensing) Storage Temperature: -40°C to 60°C Storage Humidity: 20% to 95% (non-condensing) |

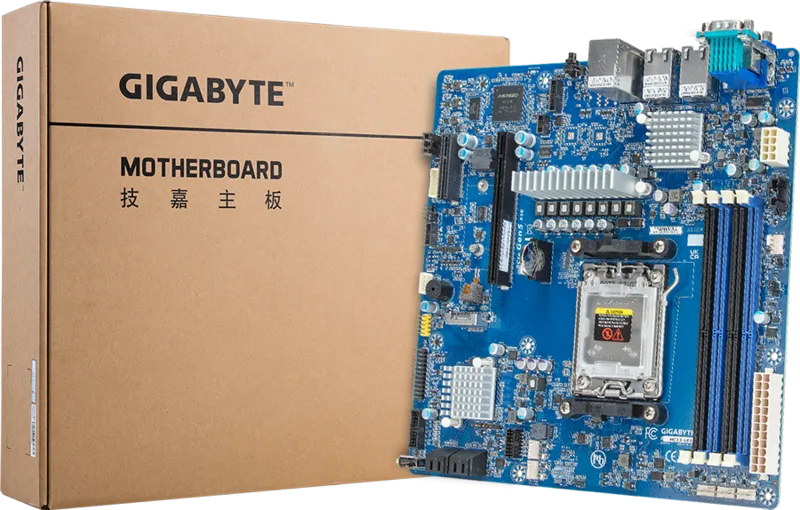

| Retail Package Contents | 1 x MC13-LE1 motherboard 1 x I/O shield 1 x Quick Start Guide 4 x SATA cables (500 mm) Box Size: 321 x 308.5 x 78.5 mm |
| Bulk Package Contents | 10 x MC13-LE1 motherboards 10 x I/O shields Carton Size: 609 x 581 x 362 mm |
| Reference Numbers | Retail SKU: 9MC13LE1MR-000-4*/3*/1* Bulk SKU: 9MC13LE1NR-000-4*/3*/1* I/O Shield: 12AIO-MC13LE-10R SATA Cable: 12CF1-2SAT1B-01R |
TECHNICAL RESOURCES
-
Manual : Datasheet (English)
